Station roster · Supported, beta

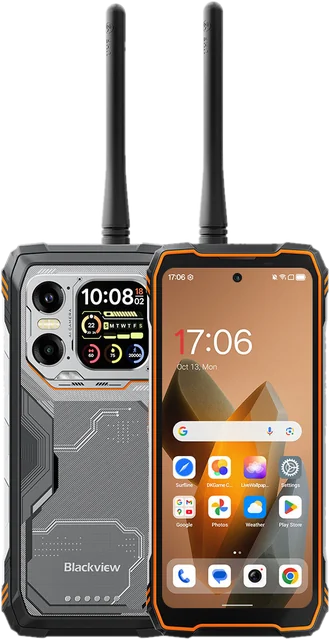

Blackview Xplore 1
Walkie-talkie model
A DMR phone with the Armor's module protocol and audio over a second serial port; receive works for testers.
| Feature | Result | Notes |
|---|---|---|
| Signal meter | Works | Signal readings answer |
| FM receive | Works | Voice clear in testers' reports |
| FM transmit | Untested | Blocked until the profile is verified |
| DMR receive | Untested | |
| DMR transmit | Untested | Blocked until the profile is verified |
| Module firmware loader | Untested |
Profile in testing
Testers have receive, MON, CTCSS and channel import working. Transmit stays blocked until the profile is verified, and SignalDeck does not take over the radio by itself.
Channel changes need a pause
The stock app never writes channels less than 1 second apart; a burst of quick changes made the module refuse MON. SignalDeck keeps the same gap and only sends the newest channel.
The module can stop taking commands
After an update the module was sometimes left on but not answering. SignalDeck checks at start-up and restarts the module when it does not answer.
Slower reception reports
The radio reports a reception later than the Armor, so scanning waits 2.5 seconds per channel.
Squelch after MON
On firmware V016 the squelch was seen to stay open after MON was switched off. SignalDeck now sends the channel, monitor and squelch in the stock app's order; tell us if it still happens.
- Receive audio
- 100 packets per second, 8 kHz monoTester's unit, 2026-10-21.
- Signal with a nearby transmitter
- -48 to -53 dBmA handheld keyed next to the phone in a shielded box (2026-10-22).
- Stock
- DMR003BN.UV4P.V016
